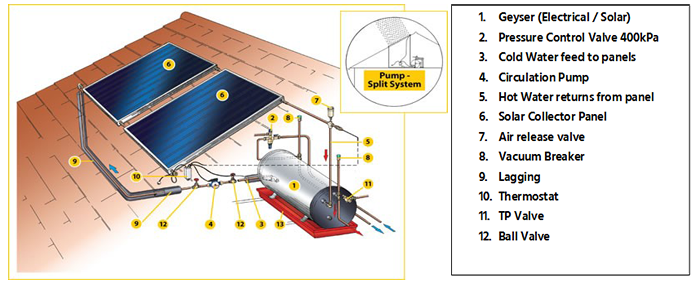

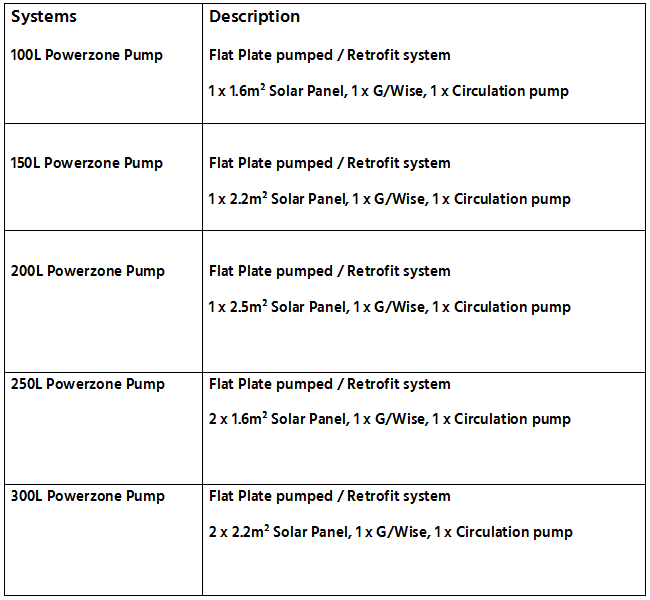

The above design will be for both the Retrofit and Complete Pump Solar System

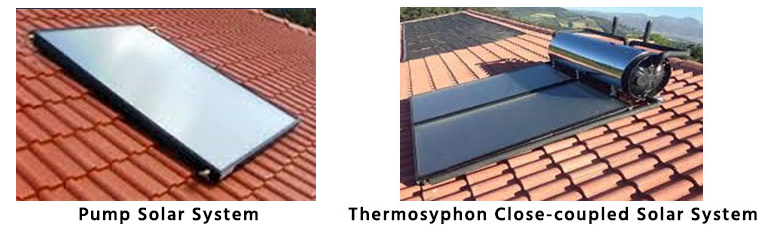

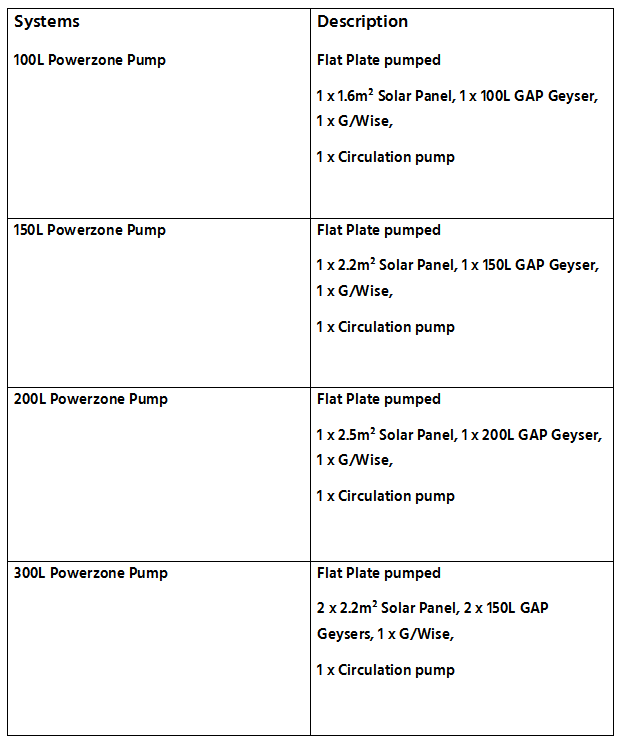

Complete Pump Solar System – this is when the panel is on the roof and the geyser is fitted in the ceiling or garage.



Complete Thermosiphon Solar System – this is when the panel and geyser is fitted on the roof.

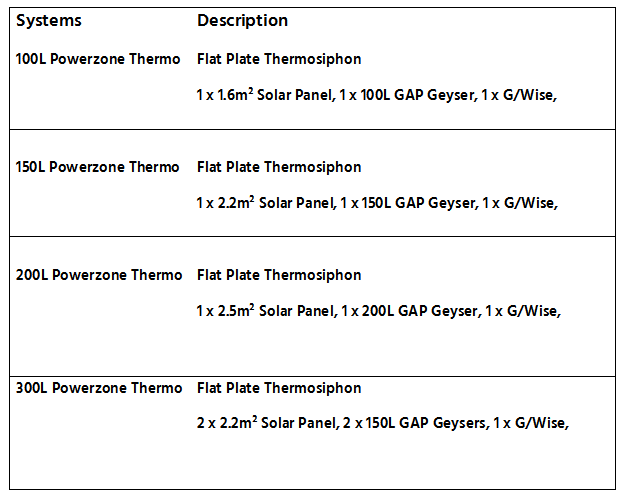

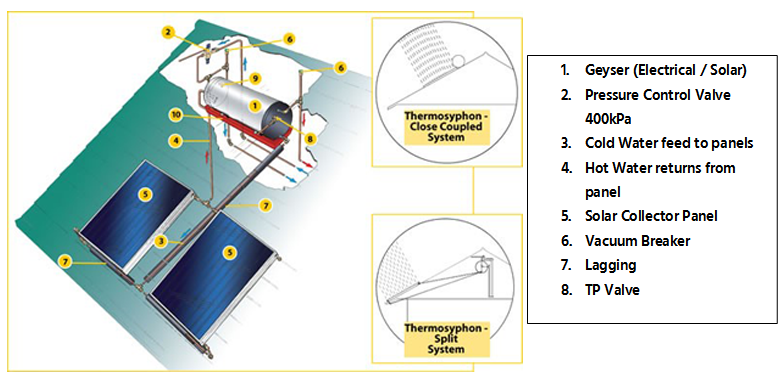

This is the design for Thermosiphon Close-coupled Solar System
